A shale shaker is very important in oil and gas drilling. You use this machine to take solids out of drilling fluid. This helps your drilling work go well. Shale shakers use shaking and special screens to get rid of unwanted bits fast. New technology, like Xilong Machinery’s Double/Triple Deck Shaker, makes drilling much better.
Aspect | Impact on Drilling Efficiency |
Screen Life Improvement | Screens last longer, so you do not need to fix them as often. This means less time when the machine is not working. |
Vibration Efficiency | Better shaking helps separate solids from fluid. This saves more fluid and keeps it cleaner. |
Higher Capacity (Triple Deck) | It can handle more drilling fluid and remove smaller solids. This helps drilling work faster and better. |
Key Takeaways
Shale shakers take solids out of drilling fluid to keep it clean and protect the tools. Vibration and special screens work together to quickly separate solids and save more drilling fluid. Changing vibration settings and picking the right screen size helps separate solids better and saves time and money. Multi-deck shale shakers can handle more fluid and remove solids in steps, so drilling is faster and works better. Checking and changing screens often helps stop problems and keeps drilling going well.
Shale Shaker Principle
Vibration Mechanism
A shale shaker uses vibration to separate solids from drilling fluid. This is the main idea behind how a shale shaker works. The machine makes strong vibrations with special motors. These vibrations shake the screen surface very fast. When drilling fluid with cuttings goes onto the screen, the vibration helps sort everything.
The shale shaker puts drilling fluid onto the vibrating screen.
The vibration moves the fluid and solids across the mesh.
Small particles and clean fluid go through the screen holes.
Bigger solids stay on top and move forward, away from the fluid.
The vibration can be straight or oval, which helps move solids faster and makes filtration better.
The vibrating screen pushes up and down. When the screen goes up, it pushes fluid down through the mesh. Solids do not follow the screen when it goes down, so they move forward and off the screen. This helps you get more fluid back and remove more solids. The vibration also cuts the fluid, so it flows better and passes through the screen faster. You get better filtration and cleaner drilling fluid.
Tip: The way a shale shaker is built, like the vibration type and stroke length, can change how well it works. New models like Xilong Machinery’s Double/Triple Deck Shaker use strong motors and special screens to work even better.
Drilling Fluid Separation
The shale shaker working principle is about separating solids early in drilling. When drilling fluid with cuttings goes onto the shaker, the machine acts first to clean it. The screen mesh lets clean fluid go through but keeps bigger solids out.
Shale shakers take out big solids before the fluid goes to other machines.
Removing solids early protects tools like desanders and centrifuges from harm.
This protection helps equipment last longer and lowers repair costs.
Good solids control keeps drilling fluid steady, which is important for safe and good drilling.
You also make less waste, which is better for the environment.
The vibrating screen gets back more fluid by using vibration and the pressure from the fluid pool above the screen. This pushes more fluid through the mesh and moves solids off the screen fast. You get cleaner drilling fluid and less waste, so your drilling work goes smoother and costs less.
Shale Shaker Components

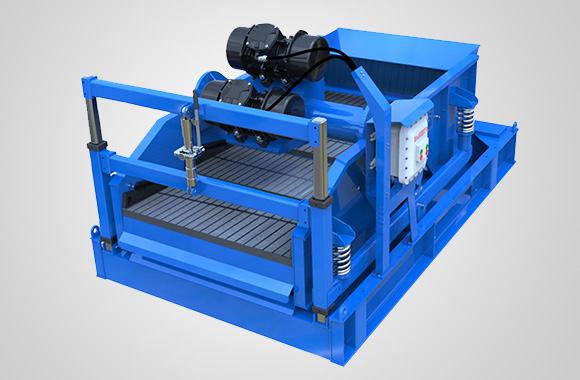

A shale shaker works well because it has special parts. Each part helps you control solids better. This makes drilling safer and more efficient. Let’s see the main parts in a modern shale shaker like Xilong Machinery’s Double/Triple Deck Shaker.
Motors and Screens
The motor is the main part of the shale shaker. It uses a high G-force motor to make strong vibrations. These vibrations move drilling fluid and solids over the shaker screen. The power and design of the motor decide how well solids are separated from fluid.
Specification | Details |
Vibration Motor Power | 2×1.94 kW |
Adjustable G-force | Up to 8.0 G |
Vibration Amplitude | 4.38 to 6.32 mm |
Screen Quantity | 4 pcs |
Screen Area | 2.73 m² |
Deck Angle Range | -1° to +5° (adjustable) |
Vibration Model | Linear Motion |
Weight | 2096 kg |
Dimensions (L×W×H) | 2962×1995×1619 mm |
You can change the G-force of the motor for your needs. This helps you work with different drilling fluids and solids. Linear motion moves solids off the screen fast and keeps fluid clean.
The shaker screen is also very important. Xilong Machinery uses modular screens that are 650x610x40mm. These screens are light and made from strong materials. You can swap them quickly because of the fast-change design. This saves time and keeps your work going.
Modular screens make fixing things easier.
You can change screens fast for new drilling jobs.
Quick-change screens mean less waiting.
Open designs help you clean and swap screens quickly.
When you use the right screen and motor, you separate solids better and make less waste. This also keeps your equipment safe from harm.
Control Systems
The control system helps you run the shale shaker easily. You can change how strong and fast the vibration is. This lets you match the settings to the drilling fluid and solids. The control panel is simple to use and easy to reach. Xilong Machinery puts the main knob in front and keeps sensitive parts in back to stop vibration damage.
You can turn the shaker on and off quickly.
Safety features like emergency stops keep you safe.
Sensors check vibration, temperature, and motor power.
Real-time data helps you make fast changes for better work.
The system can warn you about problems early.
Advanced control systems let you connect the shale shaker to other machines. You can watch everything in real time and change settings automatically. This keeps drilling fluid clean and lowers mistakes.
Lifting and Damping Devices
You need lifting and damping devices to keep the shale shaker working well. The hydraulic lifting device lets you change the shaker’s angle fast. Xilong Machinery uses a hydraulic system made from aluminum alloy. This makes it strong, light, and safe from rust. You can lift more and make changes faster.
The pneumatic compression device lets you change the shaker basket angle with one button. This makes it easy to handle different flow rates and drilling jobs. You save time and do not need to adjust things by hand.
Damping systems protect the shaker from too much shaking. They use strong springs and special coatings to take in shocks. This keeps the machine steady and stops it from wearing out fast. Your equipment lasts longer and you have less downtime.
Feature/Aspect | Description |
Shock and Vibration Absorption | Damper springs take in shocks and shaking, keeping the machine steady during drilling fluid separation. |
Material Quality | Strong steel core with a coating that stops rust for long life. |
Compression Capacity | Handles heavy loads, keeping the shaker’s parts safe. |
Durability Improvements | Coatings and strong materials help the machine last longer and wear out less. |
Tip: Check and clean the shaker screen and damping system often. This helps you stop problems before they start and keeps your drilling work smooth.
Shale Shaker Efficiency
Vibration Settings
You can change how well your shale shaker works by adjusting vibration settings. The vibration frequency and amplitude decide how fast solids separate from drilling fluid. If you make the vibration faster, more fluid comes out of the cuttings. This helps the fluid move quicker and separates solids better. But you must be careful. If the frequency is too high, the machine can wear out faster. It can also lower the flow rate. Xilong Machinery’s Double/Triple Deck Shaker lets you change vibration settings for your drilling needs. This makes the shaker work better and saves money on repairs.
Screen Area
The size of the shaker screen changes how much drilling fluid you can handle. A bigger screen area lets you process more fluid and remove more solids. The way the screen is built is important too. If there are too many supports or backing plates, you lose space for fluid to pass. This lowers the flow rate. Xilong Machinery’s modular screens have a big open area for fluid. This design lets you move more fluid and keeps things running well. The triple deck model has even more screen area. You can process more fluid without losing efficiency.
Note: The mesh size of the screen matters a lot. Finer mesh catches smaller solids but slows down fluid flow. Coarser mesh lets more fluid through but may miss small particles. Pick the right mesh size for your drilling fluid and the solids you want to remove.
Fluid Properties
The type of drilling fluid changes how well your shale shaker works. Thick fluid or fluid with lots of solids can block the screen. This makes separation harder. You should check the viscosity and density of your drilling fluid. High viscosity slows down the flow and can block the screen. To keep your shaker working well, change the fluid properties and watch the flow rate. Xilong Machinery’s control systems help you make these changes fast. This keeps your work smooth and lowers downtime.
Xilong Machinery’s Double/Triple Deck Shaker meets strict international standards like IEC, UL, ATEX, and CE. You can use it in very cold or hot places, from -40°C to 50°C. It will work safely and reliably.
Types of Shale Shakers
When you pick drilling equipment, you see many shale shakers. Each type has a special design and job. You should learn how single, double, and triple deck shale shakers work. This helps you choose the right one for your project.
Single Deck
Single deck shale shakers have one screen layer. They give basic separation of solids from drilling fluid. These machines are good for small rigs and jobs with less solids. They are simple to use and easy to fix. The price is low, and they do not take up much space. If you want simple solids control, single deck models are enough.
Double Deck
Double deck shale shakers have two screens stacked together. The top screen takes out bigger solids. The bottom screen catches smaller particles. This setup lets you handle more mud and different particle sizes. You get better fluid recovery and protect other equipment. Double deck models are good for medium or large rigs. They help you control solids more accurately.
Triple Deck
Triple deck shale shakers use three screen layers for better filtration. They give high precision separation and can handle lots of drilling fluid. These machines are best for hard drilling jobs, like deep wells or shale gas. Triple deck models from Xilong Machinery can replace older systems like desanders and desilters. You need fewer machines, so you save space and money. The modular design lets you change screens fast and keeps downtime short.
Feature | Single-Deck Shale Shaker | Double-Deck Shale Shaker | Triple-Deck Shale Shaker |
Number of Decks | 1 | 2 | 3 |
Separation | Basic | Layered | Multi-stage, high precision |
Capacity | Low | Medium to high | High throughput |
Footprint | Small | Medium | Large |
Cost | Low | Medium | High |
Typical Use | Small rigs | Medium to large rigs | Deep drilling, shale gas |
Advantages | Simple, easy to maintain | Improved accuracy | High efficiency, replaces other equipment |
Multi-deck shale shakers do many jobs in one machine. You get staged screening, shaking, and can change the angle. These features help you remove solids faster and keep drilling fluid clean. You spend less time fixing things and more time drilling.
Triple deck shale shakers can handle twice as much fluid.
You use fewer screens and finish drilling faster.
Pneumatic screen clamping makes changing screens safe and quick.
Advanced controls let you set the best solids control.
If you want better drilling and less equipment, pick a multi-deck shale shaker from Xilong Machinery. You get strong performance and better solids control for every job.
Shale shakers take solids out of drilling fluid. This makes oil and gas drilling safer. It also helps the work go faster and better. New machines, like Xilong Machinery’s Double/Triple Deck Shaker, use smart technology. They help control solids, stop delays, and save money. More people want shale shakers now. These machines help drilling work well and protect the environment.
Good solids control:
Keeps drilling fluid clean
Stops equipment from wearing out
Makes drilling safe and smooth
Do you want better drilling results? Reach out to us. We can show you how our solutions help your business do well.
FAQ
What does a shale shaker do in drilling?
A shale shaker removes solids from drilling fluid. You use it to keep the fluid clean. Clean fluid helps your drilling go faster and protects your equipment.
How often should you change shaker screens?
You should check screens every day. Change them if you see holes, tears, or blocked mesh. Quick-change screens from Xilong Machinery make this job fast and easy.
Can you adjust the vibration settings?
Yes, you can adjust vibration settings on Xilong Machinery’s Double/Triple Deck Shaker. This helps you match the shaker to different drilling fluids and solids.
Why is early solids removal important?
Early solids removal keeps your drilling fluid clean. You protect pumps and other tools from damage. This saves you money and reduces downtime.
What makes Xilong Machinery’s shaker special?
You get a large screen area, strong motors, and fast screen changes. The design lets you handle more fluid and remove more solids. This means better drilling results for you.
