Operating a modern drilling rig requires massive mechanical power and absolute precision. At the heart of this complex operation sits the drilling mud pump. These powerful machines circulate vital fluids deep into the earth. Procurement teams face a critical challenge when sourcing this equipment. Selecting the wrong pump capacity directly causes catastrophic non-productive time (NPT) and severe system failure. You must carefully balance immediate hydraulic demands against long-term operational endurance.
This guide provides a practical, data-driven framework for evaluating and shortlisting heavy equipment. We will explore system-level hydraulic requirements, fluid end metallurgy, and exact sizing formulas. You will learn how to configure reliable Drilling Mud Pumps to keep your rig running efficiently. By moving beyond basic spec sheets, operators can secure machinery built for extreme field conditions. We outline the exact engineering baselines you need to make confident, long-lasting procurement decisions.
Key Takeaways
System Synergy: Pump selection must be reverse-engineered from desired uphole velocity (100–150 ft/min) and drill pipe internal diameter.
Sizing Math: Use Hydraulic Horsepower (HHP) calculations rather than relying solely on nameplate ratings to ensure operational safety margins.
TCO Realities: Long-term operation near maximum pressure limits drastically accelerates fluid end wear; oversizing slightly can yield significant lifecycle savings.
Vendor Verification: Always demand Machinery Test Reports and remote outgoing-inspection videos to validate OEM compliance and component quality.
Moving Beyond Nameplate Specs: Defining System-Level Hydraulic Requirements
Proper equipment selection always begins below the surface. You cannot simply pick a pump based on its maximum horsepower rating. Instead, you must reverse-engineer your surface equipment needs based on your specific downhole environment. The primary goal of any mud circulation system involves transporting rock cuttings to the surface safely and efficiently.
The Uphole Velocity Rule
To effectively transport cuttings and prevent hole collapse, your drilling fluid must maintain a consistent uphole velocity. Industry standards dictate an optimal range of 100 to 150 feet per minute in the annulus. Falling below this velocity allows cuttings to settle. Settled debris rapidly leads to stuck pipe incidents and severe wellbore damage. You must calculate the exact volumetric flow rate required to achieve this velocity within your specific wellbore diameter.
Drill Pipe & BHA Compatibility
Modern well profiles heavily influence your hydraulic demands. Extended Reach Drilling (ERD) pushes the physical limits of fluid dynamics. Operators increasingly utilize larger drill pipes, such as 5-1/2 inch configurations, to reduce internal friction during deep horizontal runs. While larger pipes lower internal pressure losses, they demand massive fluid volumes to maintain appropriate annular velocity. Your surface equipment must generate enough flow to satisfy these larger system geometries. A mismatch here starves the bit of necessary cooling and cleaning fluid.
The Pressure vs. Flow Dynamic
Every drilling operation faces an operational trade-off between volume and force. Large-diameter shallow hole sections require massive flow rates (GPM) for adequate hole cleaning. Conversely, deep, directional, or high-pressure formations demand intense sustained pressure (PSI). High pressure overcomes massive friction losses along long horizontal laterals. It also maintains essential well control against formation kicks. You must map your well's specific trajectory to determine whether your primary challenge is volume or pressure. Your chosen Drilling Mud Pumps must adapt to these shifting dynamic loads seamlessly.
Evaluating Core Configurations: Triplex F-Series vs. Legacy Designs
The oilfield has evolved significantly over the past few decades. Pumping technology advanced from massive, cumbersome units to highly efficient, standardized designs. Understanding these architectural shifts helps you avoid purchasing obsolete or inefficient machinery.
Design Categories
Historically, rigs relied heavily on legacy Duplex pumps. These double-acting units pump fluid on both the forward and reverse strokes of the piston. While they move high volumes, they produce severe fluid pulsation and require complex internal sealing. Standard Triplex designs utilize three single-acting plungers or pistons. They only displace fluid on the forward stroke. This fundamental difference in geometry changes everything about how the equipment performs on the rig floor.
Why Triplex Dominates Oilfield Applications
The Triplex design reigns supreme in modern continuous-duty operations. Three alternating cylinders provide a dramatically smoother discharge flow. This reduced pulsation protects delicate downstream equipment, including rotary hoses and measurement-while-drilling (MWD) tools. Furthermore, Triplex units weigh significantly less than their Duplex counterparts for the same horsepower rating. They offer much easier maintenance access. Crews can swap out liners and pistons rapidly, minimizing critical downtime.
The "F-Series" Industry Standard
When procurement teams discuss modern circulation, they almost always reference the F-Series. This specific architectural family spans from the compact F-500 up to the massive F-2200. It serves as the interchangeable industry benchmark. The F-Series operates reliably within critical boundaries of 5,000 to 7,500 PSI and 100 to 1,300 GPM. Because it conforms to universal sizing standards, operators enjoy absolute confidence in parts availability across global supply chains.
| Feature | Legacy Duplex | Modern Triplex (F-Series) |
| Action Type | Double-acting | Single-acting |
| Flow Pulsation | High (Requires heavy dampening) | Low (Smoother baseline flow) |
| Maintenance Accessibility | Complex and time-consuming | Fast, modular component swaps |
| Weight-to-Power Ratio | Heavy and bulky | Optimized and compact |

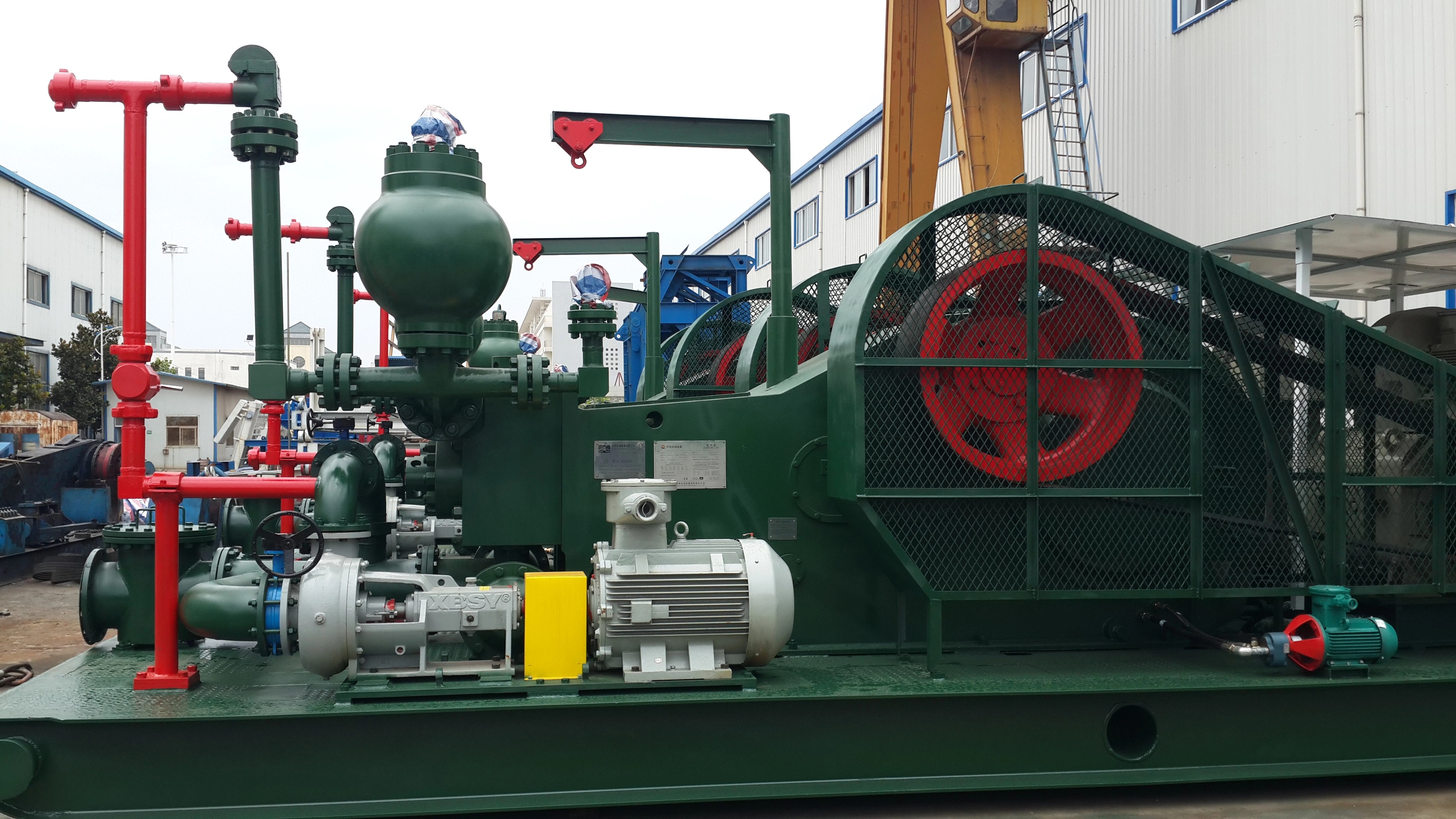

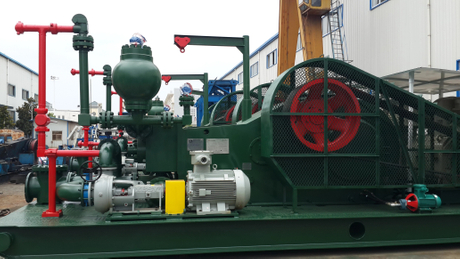

![Industrial Drilling Mud Pump Configuration]()
Sizing Your Drilling Mud Pumps: A Data-Driven Matching Framework
Guesswork has no place in rig engineering. Purchasing undersized equipment guarantees failure, while indiscriminately sizing up wastes valuable deck space. You need a structured, mathematical approach to match pump output directly to your rig's prime movers.
The Hydraulic Horsepower (HHP) Formula
Before negotiating with vendors, you must master the fundamental engineering calculation for pump sizing. Hydraulic Horsepower determines the actual work performed by the fluid. Use this formula: HHP = (Pressure in PSI × Flow Rate in GPM) / 1714. Buyers must use this exact math to verify actual required power versus glossy vendor marketing claims. Mechanical efficiency losses mean a pump rated for 1600 HP will only deliver about 1300 to 1400 true HHP. Always calculate your maximum required HHP and factor in an appropriate safety margin.
Rig Size to Pump Fleet Matching
Standardized configurations ensure your rig maintains adequate redundancy. Single points of failure halt drilling entirely. We recommend specific fleet baselines based on total rig horsepower and target well depth.
Shallow Wells (<2000m) / 1000 HP Rigs: Deploy dual F-800 or F-1000 units. This provides sufficient volume for rapid top-hole drilling while maintaining a backup.
Medium-Deep Wells (2000–3500m) / 1500 HP Rigs: Deploy dual F-1600 units. These handle moderate depths and directional kick-offs effortlessly.
Deep/Complex Wells (>3500m) / 2000–3000 HP Rigs: Deploy three to four F-1600 or F-2200 units. Deep, high-pressure environments require massive sustained hydraulic force and redundant fallback options.
Avoiding the "Max Limit" Trap
Many operators make a critical sizing error. They size their equipment to run constantly at 100% of its rated capacity. Operating continuously at maximum pressure dramatically shortens liner lifespans. It accelerates valve fatigue and stresses the entire power end. A machine running at its absolute limit will break down quickly. We strongly advise sizing your Drilling Mud Pumps so routine operations utilize only 70% to 80% of their maximum rated capacity. This provides a crucial surge margin for sudden wellbore stability issues.
Fluid End Metallurgy and Maintenance Realities
The fluid end takes a brutal beating. It continuously forces abrasive, chemically harsh fluids downhole under immense pressure. Choosing the correct metallurgy directly dictates your maintenance frequency and overall rig uptime.
Material Selection for Harsh Fluids
Base your fluid end materials precisely on your anticipated mud properties. Standard steel components fail rapidly when exposed to high-solids mixtures. We recommend specialized alloys for abrasive environments. When pumping oil-based muds (OBM) or highly caustic synthetic fluids, specify stainless steel valve pots. For high-sand-content formations, upgrade to ceramic liners. Ceramic resists scouring much better than standard chrome-plated iron, keeping your system sealed tightly during extended lateral runs.
The Maintenance Clock
Set realistic operational expectations for your rig crews. Consumables wear out predictably. Establishing a strict maintenance clock prevents unexpected failures mid-circulation.
Liner Inspections: Crews must visually inspect liners every 200 hours. Watch for washouts or internal grooving.
Piston Replacements: Rubber and urethane pistons demand replacement every 300 to 500 hours, depending on operating temperatures.
Valve Fatigue Checks: Valves and seats require meticulous checks every 250 hours. Even microscopic pitting destroys the necessary high-pressure seal.
Rebuild vs. Replace Logic
Field supervisors need clear guidelines regarding fluid end repairs. You must establish a firm framework for rebuild versus replace decisions. Minor washout pitting often permits a localized rebuild or smoothing operation. However, severe rod scoring, cracked valve webs, or deep metal fatigue dictates a total module replacement. Do not gamble on structurally compromised steel under 7,500 PSI loads.
HSE Compliance and Implementation Realities
Health, Safety, and Environmental (HSE) compliance represents a non-negotiable aspect of oilfield operations. Integrating heavy rotating equipment safely requires specific auxiliary systems to protect both personnel and the machinery itself.
Cavitation Prevention
Cavitation destroys heavy machinery from the inside out. When a pump starves for fluid, vapor bubbles form and collapse violently against metal surfaces. Proper system integration eliminates this threat. You must install high-capacity centrifugal charge pumps on the suction side. Charge pumps forcefully feed fluid into the suction manifold, ensuring total priming and preventing dangerous vacuum pockets during high-speed operation.
Safety and Pressure Relief
Uncontrolled pressure spikes cause catastrophic ruptures. You must incorporate mandatory HSE features into your piping manifold. Install adequately tested pressure relief valves (PRV) that automatically pop open if the discharge exceeds safe limits. Additionally, integrate electronic emergency shutdown (ESD) systems tied directly to the driller's cabin. Mechanical safety also matters. Ensure your chosen models feature rugged crosshead crank gear enclosures. These enclosures absorb internal lateral stresses, preventing catastrophic drive failures.
Vibration and Cooling
Continuous operations generate intense mechanical friction. High-pressure drilling creates enormous thermal loads on piston rubbers and liners. Your setup must include an integrated spray cooling system. This system constantly showers the backs of the pistons with cooling fluid. Furthermore, securely anchor the skid to dampen heavy vibration. Excessive vibration cracks high-pressure iron and loosens critical internal fasteners.
Vendor Shortlisting: Essential Procurement Trust Signals
Sourcing reliable heavy machinery requires strict vendor vetting. You must separate genuine original equipment manufacturers from lower-tier assemblers. Look for specific trust signals before signing any purchase orders.
OEM Interchangeability
Global supply chain bottlenecks cripple isolated drilling rigs. You must ensure your vendor's internal components adhere strictly to major global OEM standards. Specifically, API valve pots, liners, and crosshead assemblies must be 100% compatible with dominant legacy brands like Emsco or National. This guarantees you can source replacement parts locally from generic suppliers if an emergency arises in a remote oilfield.
Component Transparency
High-quality machinery utilizes premium sub-components. Instruct your buyers to verify the origin of all critical internal parts. Ask vendors explicitly about their supply chain for gearboxes, main bearings, and electric motors. A robust frame means nothing if the internal pinion bearings fail after a week of continuous duty. Top-tier builders gladly disclose their bearing and seal manufacturers.
Proof of Quality
Never accept basic visual inspections for high-pressure equipment. Advise your procurement teams to mandate rigorous physical proof of quality before authorizing shipment.
Machinery Test Reports: Demand comprehensive metallurgical and hydrostatic test logs. Manufacturers must prove they pressure-tested the fluid end well beyond its rating, often exceeding 11,000 PSI, to verify casting integrity.
Remote Verification: Require video outgoing-inspections. Engage in third-party cloud-based factory acceptance testing (FAT). Watch the equipment run on the test stand via live video link to confirm smooth, vibration-free operation.
Conclusion
Selecting the optimal equipment dictates the fundamental success of your drilling campaign. The right pump perfectly balances immediate hydraulic demands with long-term operational reliability. By understanding uphole velocity rules, HHP formulas, and fluid end metallurgy, operators can prevent catastrophic NPT. Always prioritize OEM part interchangeability to secure your supply chain against unexpected breakdowns.
Take action today by refining your procurement strategy. Bring your specific well design profiles, calculated uphole velocities, and rig horsepower specifications to your next vendor discussion. Demand customized, data-backed configurations rather than accepting off-the-shelf suggestions. Rigorous vetting ensures you deploy machinery capable of handling the harshest downhole environments reliably.
FAQ
Q: What does "F-Series" mean in drilling mud pumps?
A: The F-Series refers to an industry-standard, highly interchangeable triplex pump design. Originally popularized by major OEM brands, it has become the universal benchmark for modern rigs. They are recognized for their modular parts, making maintenance and global sourcing exceptionally easy.
Q: How do I calculate the actual horsepower required for my mud pump?
A: Use the fundamental formula: HHP = (PSI × GPM) / 1714. This calculates your Hydraulic Horsepower. Remember to account for mechanical efficiency losses. Typically, a pump operates at around 85% to 90% mechanical efficiency, meaning your input horsepower must be higher than your required fluid HHP.
Q: When should we consider a 5-cylinder (quintuplex) pump over a 3-cylinder (triplex)?
A: Quintuplex pumps excel in extreme high-pressure, ultra-deep, or highly space-constrained offshore applications. Five cylinders provide an even smoother flow with lower pulsation than a triplex. They pack immense power into a smaller footprint, making them ideal for specialized offshore platforms.
