In the oil and gas industry, the Wellhead Christmas Tree plays a pivotal role in the operation, safety, and efficiency of a well. However, a frequent point of confusion arises: Is the Christmas Tree part of the wellhead, or is it a separate component? This question is not only common among newcomers but also occasionally misunderstood by professionals in related industries. In this article, we’ll thoroughly explore the relationship between the wellhead and the Christmas Tree, clarify their distinct functions, and provide a structured understanding of their integration in upstream petroleum operations.
A wellhead is a critical component installed at the surface of an oil or gas well. It serves as the pressure-containing interface that connects the drilling and production equipment with the subsurface casing and tubing. Essentially, it acts as a foundational structure, providing a secure platform from which the rest of the production infrastructure is built.
The wellhead is designed to:
Provide structural and pressure integrity to the well
Anchor casing strings
Allow access to the wellbore
Control formation pressures during drilling and production
The wellhead includes elements such as casing heads, casing spools, tubing heads, and crossovers. Each of these plays a specific role in controlling and channeling pressures between the subsurface reservoir and the surface facilities.

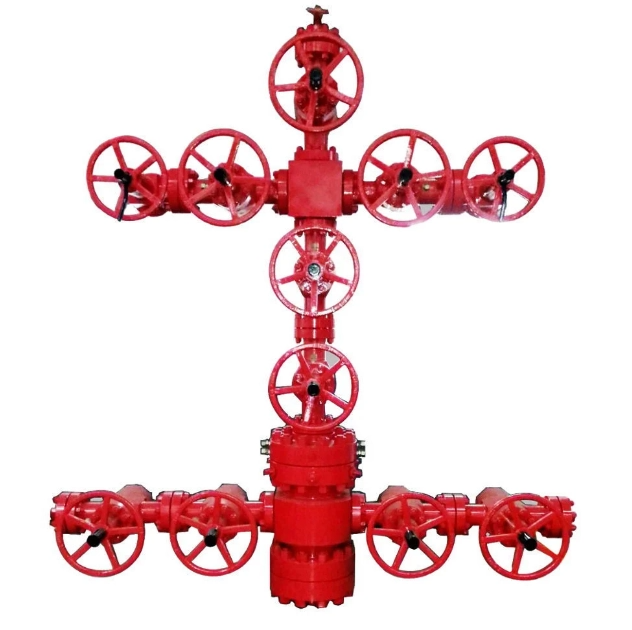

In contrast to the wellhead, the Christmas Tree is a complex assembly of valves, spools, and fittings installed on top of the wellhead. It is used after drilling is completed and the well is ready to produce hydrocarbons. Its primary function is to control the flow of oil or gas out of the well, allowing for shut-in, regulation, and redirection of flow as needed.
Components typically found in a Christmas Tree include:
Master Valve
Wing Valve
Swab Valve
Choke (positive or adjustable)
Pressure gauges and sensors
These components work together to manage flow rate, pressure, and safety during the production phase. Though visually distinct and often thought of as a separate entity, the Christmas Tree is integrally connected to the wellhead.
So, is the Christmas Tree part of the wellhead? The answer is: Yes and No, depending on how one interprets "part of."
From a mechanical and structural perspective, the Christmas Tree is not part of the core wellhead assembly. It is installed on top of the wellhead and depends on the wellhead’s integrity for support and pressure containment. Therefore, while it is functionally dependent on the wellhead, it is a distinct and separate assembly.
From an operational standpoint, however, the wellhead and the Christmas Tree are often considered as part of the same system. This is because they are both required for the safe and controlled extraction of oil and gas. Together, they ensure integrity from the reservoir to the surface facilities.
To clarify further, let’s look at a simple table:
| Component | Function | Installed When | Part of Wellhead? |
|---|---|---|---|
| Casing Head | Supports casing strings | During drilling | Yes |
| Tubing Head | Supports production tubing | Before production | Yes |
| Christmas Tree | Controls flow, pressure | After drilling, during production | No (but functionally related) |
One of the main reasons confusion exists is because industry professionals often refer to the combined system (wellhead + Christmas Tree) simply as the "wellhead" in casual or high-level discussions. This shorthand simplifies communication but leads to ambiguity in technical contexts.
Another contributing factor is that subsea wellhead systems often integrate the Christmas Tree so tightly with the wellhead housing that they are perceived as a single component. In deepwater or subsea environments, compactness and integration are vital, which can blur the lines between distinct components.
Yet, despite their physical proximity and operational interdependence, the Christmas Tree and the wellhead have separate designs, purposes, and installation sequences. Maintaining this distinction is critical for engineers, operators, and maintenance teams.
Here are a few frequently asked questions (FAQs) to further solidify your understanding:
Q1: Can a wellhead function without a Christmas Tree?
A: During the drilling phase, yes. The wellhead is installed before the Christmas Tree. However, for production, the Christmas Tree is essential for controlling flow and ensuring safety.
Q2: Are all Christmas Trees the same?
A: No. They can vary significantly depending on the application (e.g., vertical vs. horizontal trees, surface vs. subsea installations). The specific design is tailored to reservoir conditions, production goals, and environmental factors.
Q3: Why is it called a “Christmas Tree”?
A: The name comes from the visual resemblance of the vertical and horizontal valves to a decorated tree with branches. It’s a metaphor that stuck over decades of use.
Q4: Who installs the Christmas Tree?
A: Typically, a specialized service crew installs the Christmas Tree after drilling is complete and before production begins. It’s a high-precision operation requiring specialized tools and safety protocols.
In conclusion, the Christmas Tree is not technically part of the wellhead, but it is an essential extension of the wellhead system during the production phase. Understanding the distinction between these two systems is crucial for anyone involved in oil and gas operations, from engineers to procurement officers and safety inspectors.
By viewing the wellhead as the foundation and the Christmas Tree as the controller, professionals can better understand how hydrocarbons move from deep reservoirs to surface pipelines — safely, efficiently, and under strict control. The synergy between the two components is what makes modern oil production both technically possible and economically viable.
